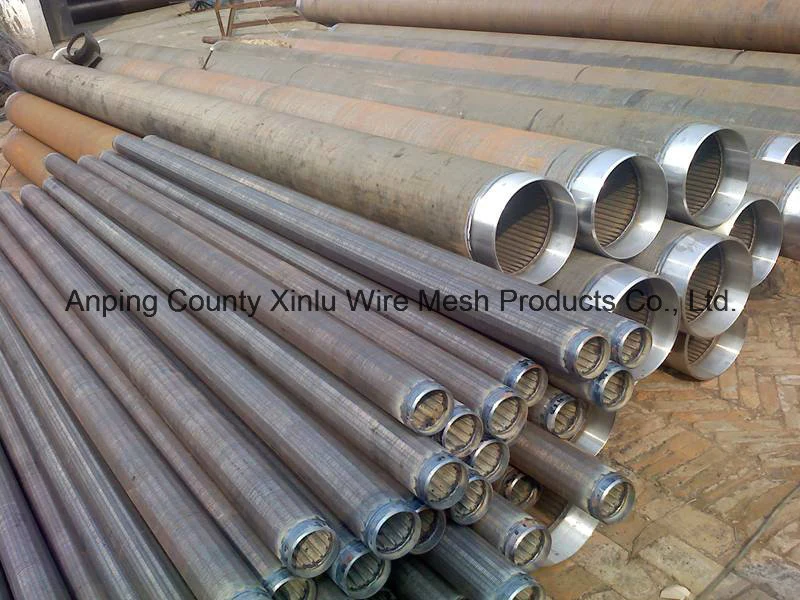

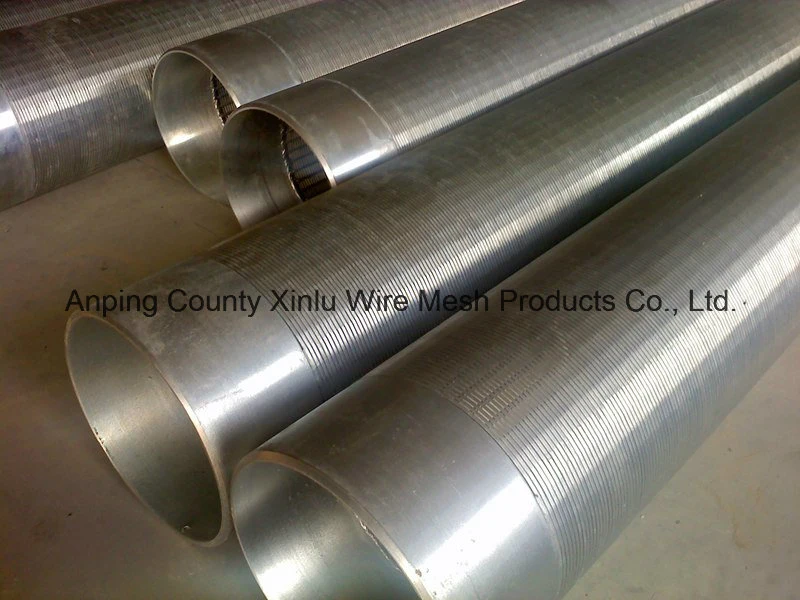

Stainless steel johnson screen /wire wrap screen/wedge wire screen pipe
Function and Characteristics:
1. The sand filter tubes have the efficient sand prevention performance can preferably forbid the formation particle and fulfill the need of sand control.
2. Even filter pores, high permeability and anti-blocking.
3. Large filtering area, small flow resistance and high oil extraction rate
4. Stainless material has the corrosion resistant ability of antacid, alkali and salt, can easily suit the special requirement of the petroleum well. And the slot wont be enlarged because of the corrosion.
5. Multiple structure was welded together with stable filtering pore which made the strong non-deformability.
Material of johnson screen:
Stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized wires
Out diameter of johnson screen:
29mm, 50mm, 68mm, 100mm, 117mm, 168mm, 219mm, 251mm, 278mm
Max diameter: 1000mm.
Slot of johnson screen:
0.05mm, 0.08mm, 0.1mm, 0.5mm, 1.0mm, 1.25mm, 2.0mm, 2.2mm, 3.0mm, 3.5mm, 5.0mm, 6.0mm and so on.
The slot can be made according to the request
Length:
3M & 6M
10MM~5850MM
End connection:
With welded ring & with tread male/female coupling
Specification of the wire and rod
Profile wire:
Width(mm): 1.5, 1.8, 2.3, 3.0, 3.3, 3.7, 4.0, 4.5
Height(mm): 1.5, 2.2, 2.5, 2.7, 3.0, 3.6, 4.0, 4.3, 4.5, 4.70, 5.
Support rods:
Width(mm): 1.5, 2.0, 2.3, 2.5, 3.0, 3.3, 3.7, 4.0, 4.5
Height(mm): 1.5, 2.2, 2.5, 2.7, 3.0, 3.6, 4.0, 4.5, 4.7, 5.5
Round rods: Diameter from 2.50mm to 6.0mm
Note: Other wires and rods available upon request
wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen,
continuous slot screen, johnson well screens,v wire slot tube, johnson wire screen, well screen pipe,
stainless steel screens, low carbon galvanized screen, wire wound stainless steel screen pipe, wire wrap
screen pipe, wedge wire strainer tube, filter element, reverse rolled cylindrial screen, cylinder element,
cylinder strainer, trommel screen, inline screens, welded steel screens, filter cartridges, slotted wede
wire screens, precsure welded screens, wedge wire screen basket, filter basket.
Stainless steel johnson screen /wire wrap screen/wedge wire screen pipe
Function and Characteristics:
1. The sand filter tubes have the efficient sand prevention performance can preferably forbid the formation particle and fulfill the need of sand control.
2. Even filter pores, high permeability and anti-blocking.
3. Large filtering area, small flow resistance and high oil extraction rate
4. Stainless material has the corrosion resistant ability of antacid, alkali and salt, can easily suit the special requirement of the petroleum well. And the slot wont be enlarged because of the corrosion.
5. Multiple structure was welded together with stable filtering pore which made the strong non-deformability.
Material of johnson screen:
Stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized wires
Out diameter of johnson screen:
29mm, 50mm, 68mm, 100mm, 117mm, 168mm, 219mm, 251mm, 278mm
Max diameter: 1000mm.
Slot of johnson screen:
0.05mm, 0.08mm, 0.1mm, 0.5mm, 1.0mm, 1.25mm, 2.0mm, 2.2mm, 3.0mm, 3.5mm, 5.0mm, 6.0mm and so on.
The slot can be made according to the request
Length:
3M & 6M
10MM~5850MM
End connection:
With welded ring & with tread male/female coupling
Specification of the wire and rod
Profile wire:
Width(mm): 1.5, 1.8, 2.3, 3.0, 3.3, 3.7, 4.0, 4.5
Height(mm): 1.5, 2.2, 2.5, 2.7, 3.0, 3.6, 4.0, 4.3, 4.5, 4.70, 5.
Support rods:
Width(mm): 1.5, 2.0, 2.3, 2.5, 3.0, 3.3, 3.7, 4.0, 4.5
Height(mm): 1.5, 2.2, 2.5, 2.7, 3.0, 3.6, 4.0, 4.5, 4.7, 5.5
Round rods: Diameter from 2.50mm to 6.0mm
Note: Other wires and rods available upon request
| Specification (wedge wire ): | Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
Specification (support rod): | Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
Note: other specifications available as per request | |
Slot size | 0.10, 0.15, 0.20, 0.25, 0.30^^ 6.00mm also achieved upon request. |
Material: | galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length | up to 6 meters. |
Diameter | from 25mm to. 1200mm. |
End connection | Plain beveled ends, flanged or. threaded couplings |
